| Polarity: | A/B/C | Loss data: | Elite loss/Standard loss |
|---|---|---|---|
| MPO Connector: | Female / Male | Cable color: | Yellow |
| Cable Material: | LSZH / OFNP / PVC | Fiber type: | G652D / G657A /G657B |
| SC Connector Type: | APC Simplex | Breakout lengthe: | 0.5M / 1M /1.5M / Customized |
| Markeren: | MPO Breakout Patch Cord,G657B Breakout Patch Cord,SM MPO Breakout Patch Cord |
||

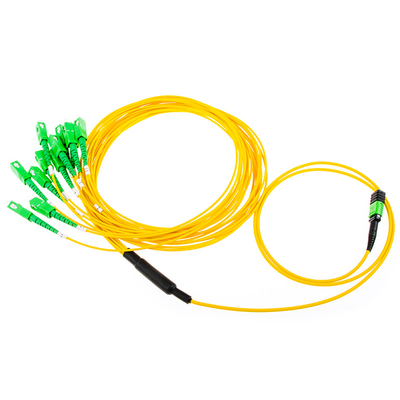

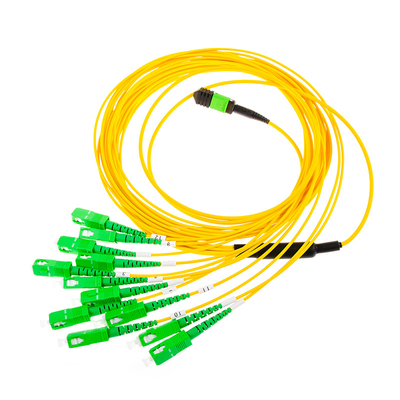

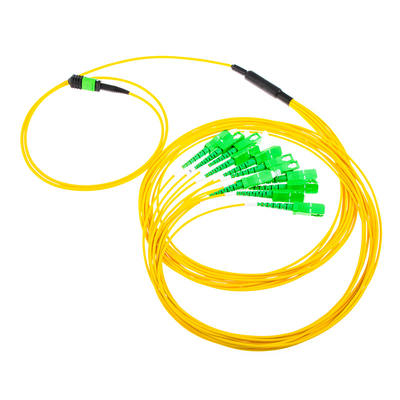

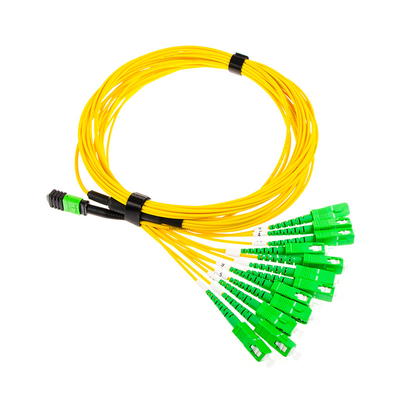

G657B 12 Core Single Mode SM MPO Breakout Patch Cord
Single mode SM Breakout Patch Cord MPO-12 core Green SC APC Fanout Cable Simplex connector
Description:
MPO/MTP to SC Internal Fan Out Cable interface multifibre MPO/MTP with discrete single fiber (LC/SC mainly) connectors. Assemblies are typically used to directly interconnect MTP/MPO cassettes, panels or backbone trunk assemblies with the active equipment ports, saving costly data centre rack space and easing fibre management. Replacing traditional MTP/MPO module Fan-Out Assemblies reduce amount of interconnection improving power budget cost
MPO/MTP to SC Fan Out Cable is built with highest quality components. Standard MPO/MTP as well low loss Elite versions and premium LC/SC are offered featuring low insertion loss for demanding high speed networks where power budgets are critical.
Features:
G652D, G.657A1, OM3, OM4
OD: 12 colors’ 0.9mm fiber cable
12*Fibre Ferrule MPO/MTP Male / Female s available in end A
LC , ST, FC, SC connectors are available in end B
Female (standard) and Male MPO/MTP Connectors
Polarity A (standard), B or C
Factory Terminated and Tested
Optional Pulling Element Available
LSZH or PVC cable jacket available
MPO/MTP Interface - MPO/MTP components feature superior optical and mechanical properties
Optimised Performance - Low loss MPO/MTP® Elite, discrete Premium (LC.SC mainly) connectors and OM4 fibre assures low insertion losses and power penalties in tight power budget high speed network environment
High Density - Multifibre connector and compact dimension of ruggedised MicroCable ease space in costly data centre environments
Rapid Deployment - Factory terminated modular system saves installation and reconfiguration time during moves, adds and changes
Reliability - 100% tested - Combination of high quality components and manufacturing quality control guarantees product to the highest standard
Next Generation Network Proof - Emerging high speed protocol are going to use MPO/MTP® interface
Specifications:
| arameter | Unit | SM Standard | SM Low loss | MM Standard | MM Low loss | |
| Insertion loss | Typical | dB | 0.35 | 0.2 | 0.35 | 0.2 |
| Max | 0.75 | 0.35 | 0.65 | 0.35 | ||
| Return loss | dB | APC≥50 | ≥ | ≥35 | ||
| PC≥40 | ||||||
| Repeatability | dB | ≤0.1 | ||||
| Interchangeabilty | dB | ≤0.3(Connector Randomly) | ||||
| Durability | dB | ≤0.3 | ≤0.3(change 1000 matings) | |||
| Vibration | dB | ≤0.3(10~55Hz) | ||||
| Operating Temperature | ℃ | -25~+70 | ||||
Application:
Drawing and Product Picture:
