| Product name: | Fiber patch cord | Cable color: | Yellow or customized |
|---|---|---|---|
| length: | 1m,2m,3m 100m or customized | Cable Dimension: | 0.9mm, 2.0mm,3.0mm |
| Connector: | SC/APC | Model: | Single Model |
| wavelength:: | 1310nm or 1550nm | Cable type: | G652D, G657A1,G657A,G657B3 |
| Markeren: | 4.6mm SM Fiber Optic Patch Cords,G657A1 Fiber Optic Patch Cords,G657A1 optical patch cord |
||
G657A1 H Connector SC APC 4.6mm SM Fiber Optic Patch Cords
Characteristics
* High Performance in IL & RL
* 4,8,12 and 24 fiber connector terminations and assemblies
* Designed for low loss and standard loss SM and MM applications
* Economical solution for mass-termination of fiber
* Suitable for MPO/MTP application
* Compliant to directive 200/95/EC(RoHS)
* MPO connector complies with IEC-61754-7
Application
Optical performance:
|
No. of cable
|
12
|
24
|
||
|
Fiber Model
|
G.657A1
|
|||
|
Strength Member
|
Material
|
Aramid yarn
|
||
|
Tight buffer
|
Material
|
PVC
|
||
|
Diameter(±0.06)mm
|
0.90
|
|||
|
Thickness(±0.03)mm
|
0.30
|
|||
|
Outer Sheath
|
Material
|
TPU
|
||
|
Color
|
Black
|
|||
|
Thickness(±0.1)mm
|
0.8
|
1.2
|
||
|
Cable Diameter(±0.2)mm
|
6.2
|
8.5
|
||
|
Cable Weight(±5)kg/km
|
35
|
68
|
||
|
Min. bending radius
|
Without Tension
|
10.0×Cable-φ
|
||
|
Under Maximum Tension
|
20.0×Cable-φ
|
|||
|
Temperature range
(℃) |
Installation
|
-20~+60
|
||
|
Transport&Storage
|
-40~+70
|
|||
|
Operation
|
-40~+70
|
|||
|
Connector Type
|
Performance Level
|
Pull strength
|
|||||
|
Standard
|
Elite
|
||||||
|
Connector
|
Mode
|
Endface
|
IL(db)
|
RL(db)
|
IL(db)
|
RL(db)
|
(N)
|
|
LC/SC/FC/ST
|
SM
|
PC
|
≤0.2
|
≥50
|
≤ 0.15
|
≥50
|
≥68N
|
|
UPC
|
≤0.2
|
≥55
|
≤0.15
|
≥55
|
|||
|
APC
|
≤0.2
|
≥60
|
≤0.15
|
≥60
|
|||
|
MM
|
PC
|
≤0.2
|
≥35
|
≤0.15
|
≥35
|
||
|
MPO/MTP
|
SM
|
APC
|
≤0.7
|
≥60
|
≤0.35
|
≥60
|
≥68N
|
|
MM
|
PC
|
≤0.5
|
≥20
|
≤0.35
|
≥20
|
||
|
MIRJ
|
SM
|
PC
|
≤0.5
|
≥50
|
/
|
/
|
≥68N
|
|
MM
|
PC
|
≤0.5
|
≥35
|
/
|
/
|
||
(1) Source Guarantee. long-term suppliers keep the raw material quality stable. All the products are ROHS certificated and satisfy exporting quality level demand.
(2) Quality Test. 1；Raw materials will be put into production line production only after passing IQC inspection,
2；IPQC inspects the production line to ensure that the production meets the quality requirements.
3；OQC tests product performance and inspects packaging to ensure that each product meets customer quality requirements
(3) Optical Test. Our products comply with IEC and ITU standards
(4) At least 30% spot test by Quality Assurance Department after the products finished.

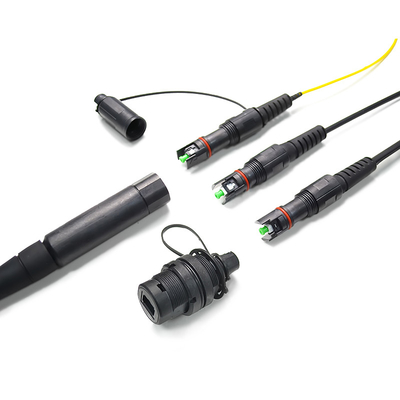

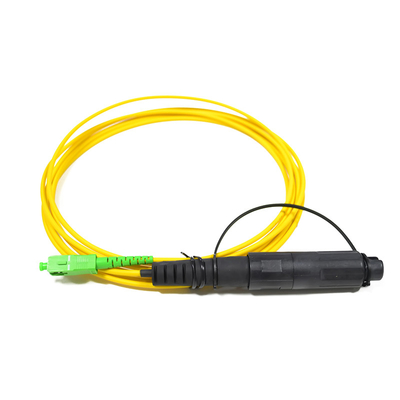

Product picture
