| Product Name:: | LC LC Patch cord | Cable color: | Aqua |
|---|---|---|---|
| length: | 1M/2M/3M...customize | Insertion loss:: | ≤0.3dB |
| fiber cores:: | 2cores | Application:: | FTTH solution |
| Markeren: | 1m Fiber Optic Patch Cord,LSZH jacket Fiber Optic Patch Cord,OM4 Fiber Optic Patch Cord |
||

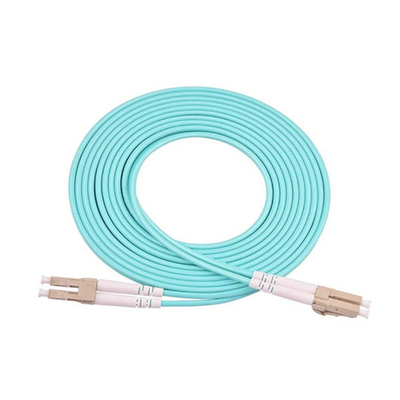

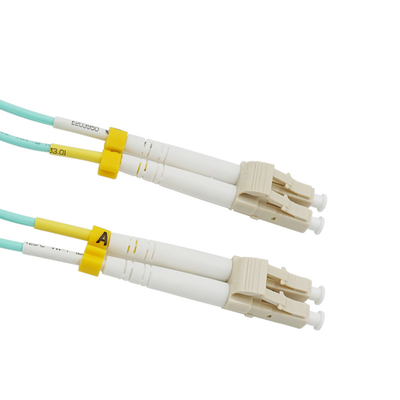

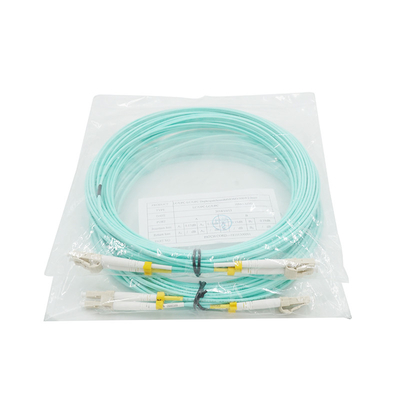

multimode lc lc connector om4 50/125 duplex jumper lszh jacket 1m fiber optic patch cord
A patch cord is a fiber optic cable used to attach one device to another for signal routing.The OM4 50/125 multimode fiber
opticcables compliant to ISO/IEC 11801 standards. They are used for 10Gbps networks to meet the requirement of continuous growing of high data rates.
|
Parameter
|
Unit
|
Standard & Requirement
|
|
Insertion Loss
|
dB
|
≤ 0.20
|
|
Changeability
|
dB
|
≤ 0.20
|
|
Radius of Curvature
|
nm
|
10 ≤ r ≤25
|
|
Curvature Eccentricity
|
um
|
<50
|
|
Fiber Core Undercut
|
nm
|
<50
|
|
Insertion Loss Change
|
dB
|
< 0.1
|
|
Return Loss Change
|
dB
|
< 5
|
|
Insert & Pull Out (Max.)
|
kg
|
2
|
|
Insert and Pull Frequency
|
time
|
> 1000
|
|
Operating Temperature
|
°C
|
-40~+85
|
