Productdetails:
Betalen & Verzenden Algemene voorwaarden:
|
| Connector: | SC,FC,LC | Fiber Count:: | 4/6/8/12 Cores |
|---|---|---|---|
| Cable diameter: | 0.9/2.0/3.0mm | fiber type: | OM4 |
| Cable color:: | Magenta | Insertion loss: | IL<0.2db |
| Markeren: | OM4 Fiber Optic cable pigtail,LC 0.9mm MM pigtail,12 Core OM4 pigtail |
||

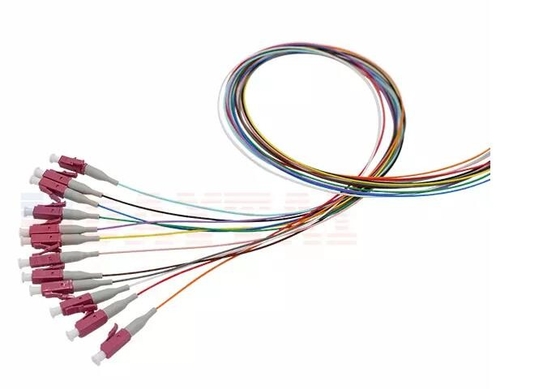

12 Core LC 0.9mm MM OM4 Fiber Optic Cable Pigtail
Manufacturer 12 core LC 0.9mm OM4 MM Fiber Optic cable pigtail Magenta connector
Description:
12 Standard Color Fiber optic Pigtail,LC/PC Connector,MM (Multi-Mode),OM4 , Diameter: 0.9mm/2.0mm/3.0mm Fiber Optic Cable,Sheath Material: PVC or LSZH is optional, Length: 1.5m, 2m, 3m...is optional.
Features :
Complying with IEC, Telcordia GR-326-CORE, YD-T 1272.3-2005,standard.
Low insertion loss, high return loss
Good in repeatability and exchangeability
High dense connection, easy for operation
Application:
1. Fiber Optic CATV
2. Fiber to home(FTTH)
3. Passive Optical Networks(PON)
4. Local Areal Networks(LAN)
5. Fiber communication systems
Parameters
|
||||||||||||||||||||||||||||||||||||||||||||||||||
