Productdetails:
Betalen & Verzenden Algemene voorwaarden:
|
| Product Name:: | CWDM DWDM SFP module for gpon epon olt | Model:: | CWDM DWDM SFP transceiver |
|---|---|---|---|
| Transmission Distance:: | 40KM 80KM 120KM etc | Wavelength:: | 850nm 1310nm 1490nm 1550nm 1610nm |
| Compatible:: | Cisco, Hp, Huawei Ect. | Fiber Type:: | singlmode mutilmode |
| Markeren: | CWDM-SFP-optische transceiver,CWDM DWDM Sfp+ Transceiver,CWDM DWDM Sfp Transceiver |
||
Module transceiver kenmerk
155Mbps tot 2.67Gbps
Ondersteunt transmissieafstand tot 120 km
18 golflengte CWDM 1270-1610nm beschikbaar
DWDM 100Ghz ITU grid C band beschikbaar
Enkele 3.3V DC ingang
Laag stroomverbruik
DDMI functie
Hot-pluggable
RoHS compliant en loodvrij
Bedrijfstemperatuur: 0°C tot +70°C
Toepassing
Gigabit Ethernet
Fiber Channel
Switch-to-switch interface
Geschakelde backplane-toepassingen
Router/Server interface
Andere optische transmissiesystemen
Specificatie
| 155Mb/s | 80km | 1270~1610nm | CWDM DFB | SM | -5~ 0dBm | <-36dBm | 0~70℃ |
| 1.25Gb/s | 40km | 1270~1610nm | CWDM DFB | SM | -5~ 0dBm | <-24dBm | 0~70℃ |
| 1.25Gb/s | 80km | 1270~1610nm | CWDM DFB | SM | 0~+5dBm | <-24dBm | 0~70℃ |
| 1.25Gb/s | 120km | 1270~1610nm | CWDM+APD | SM | 0~+5dBm | <-32dBm | 0~70℃ |
| 2.5Gb/s | 40km | 1270~1610nm | CWDM DFB | SM | 0~+5dBm | <-18dBm | 0~70℃ |
| 2.5Gb/s | 80km | 1270~1610nm | CWDM+APD | SM | 0~+5dBm | <-28dBm | 0~70℃ |
| 1.25Gb/s | 80km | DWDM | DWDM+PD | SM | 0~+5dBm | <-24dBm | 0~70℃ |
| 1.25Gb/s | 120km | DWDM | DWDM+APD | SM | 0~+5dBm | <-32dBm | 0~70℃ |
| 2.5Gb/s | 40km | DWDM | DWDM+PD | SM | 0~+5dBm | <-18dBm | 0~70℃ |
| 2.5Gb/s | 80km | DWDM | DWDM+APD | SM | 0~+5dBm | <-28dBm | 0~70℃ |
| 2.5Gb/s | 120km | DWDM | DWDM+APD | SM | > +3dBm | <-30dBm | 0~70℃ |

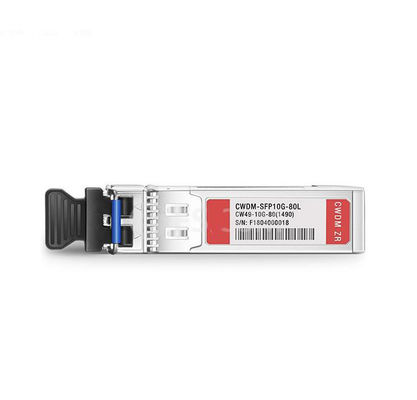

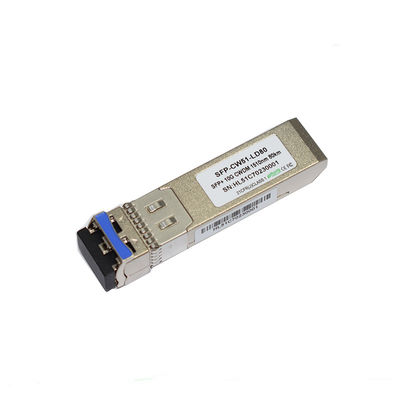

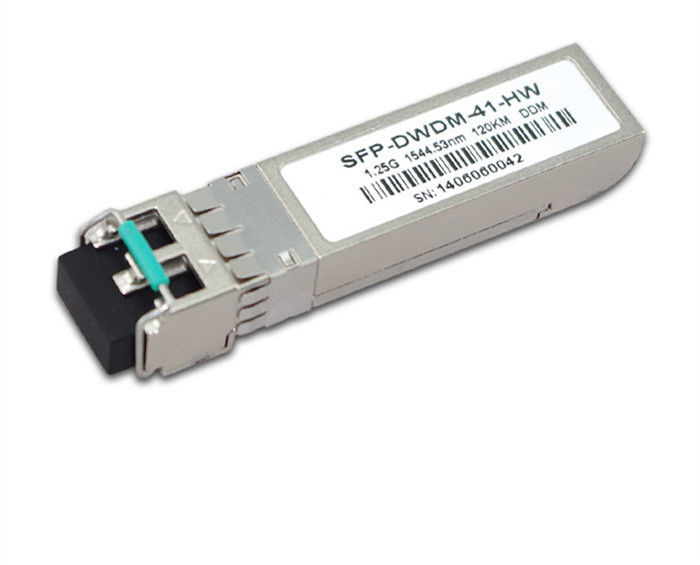

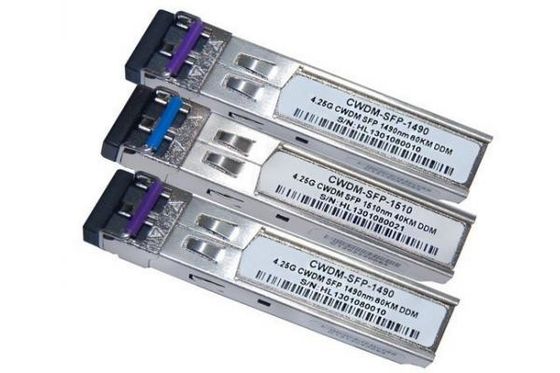

Product show
