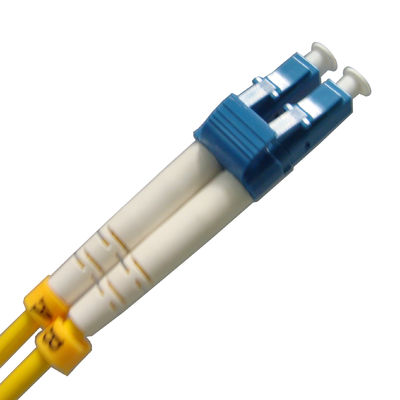

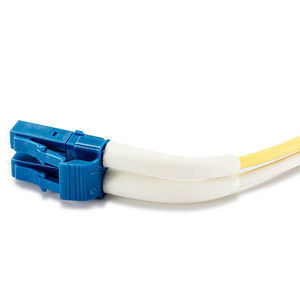

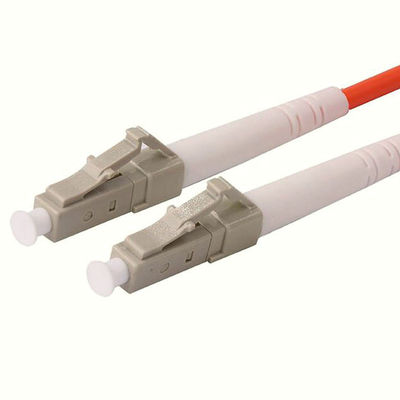

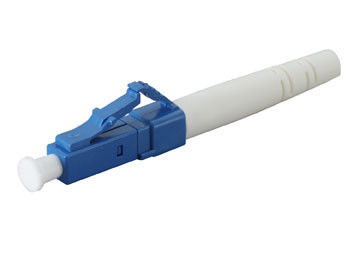

LC PC Connector SM MM PEI FBT Glasvezel Accessoires
| Ferrule End-face: | UPC, APC(8°) | Ferrule brand: | CCTC |
| Boot diameter: | 0.9/2.0/3.0mm | Fiber type: | SM / MM |

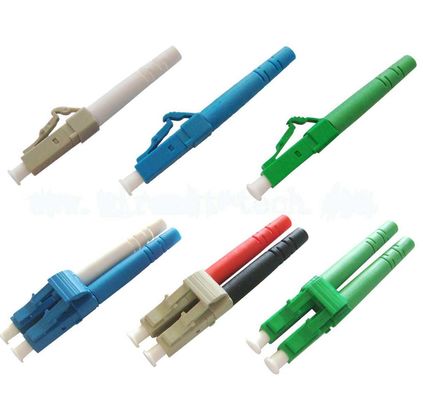

| Color: | Blue / Beige /Green | Structure: | Simplex / Duplex |
| Boot type: | 0° / 30° /45 ° | Material: | PEI / FBT |
| High Light: | PEI-accessoires voor glasvezel,Fibre optics toebehoren voor FBT,IC-PC-optische connector |
||
LC PC Connector SM MM PEI FBT Glasvezel Accessoires
* PBT-materiaal met vlamvertrager
* Simplex of Duplex
* ANSI, IEC, TIA/EIA, NTT en JIS standaard compatibel
* UL-geclassificeerde kunststof behuizing en boot in verschillende kleuren met 0,9 mm, 2,0 mm of 3,0 mm
* Precisie mechanische afmetingen
* Zirconia ferrule PC of 8 graden APC diameter 125~128 um hoge concentriciteit
* Single mode, Multimode en Angle PC

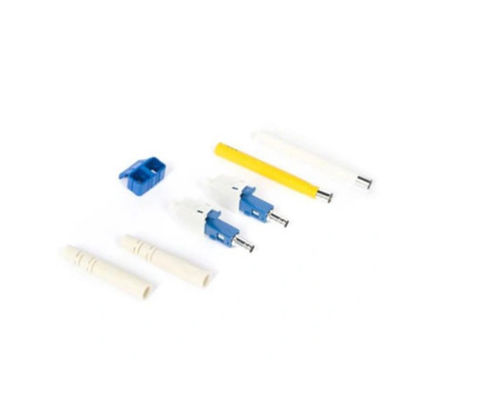

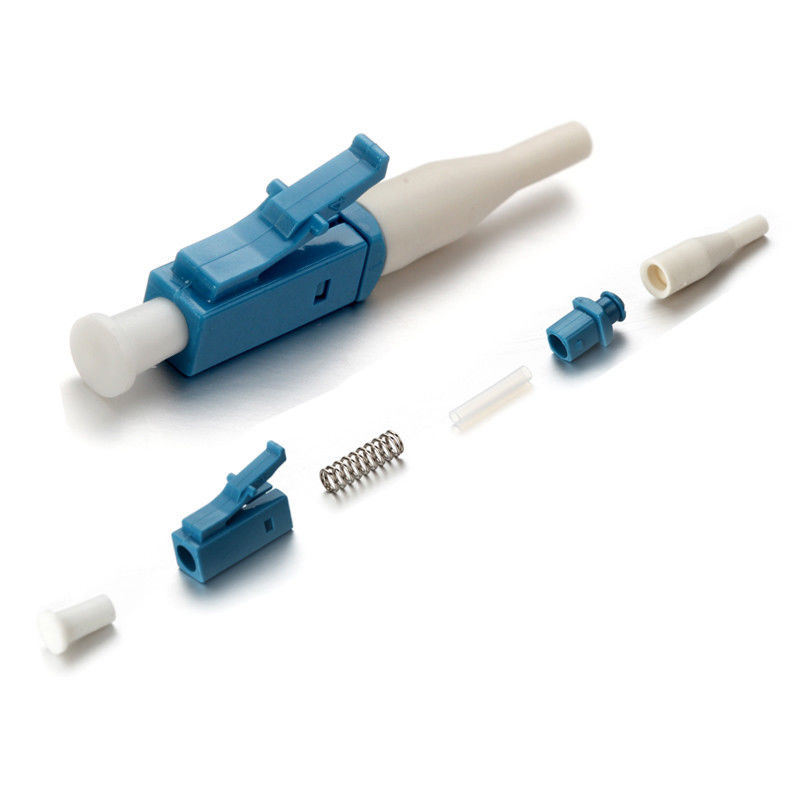

* Multi-piece type of one-piece type is beschikbaar
* Alle onderdelen voldoen aan ROHS
Kenmerken:
- Hoge retourverlies
- Laag invoegverlies
- Telcordia stijl boots
- Conform TIA/IEA, IEC, RoHS
Toepassing:
- CATV, Metro, LAN
- Actieve apparaat terminatie
- Telecommunicatienetwerken
- Industrieel, medisch, militair
Bestel informatie:
- Ferrule End-face: PC, UPC, APC
- Kerntype: Single mode (SM: 9/125um), Multimode (MM: 50/125um of 62.5/125um)
- Kern hoeveelheid: Simplex (SX), Duplex (DX)
- Boot diameter: 0,9 mm, 2,0 mm, 3,0 mm
- Kleur: Blauw, Geel, Groen
| Items | Single mode | Multimode | ||||||
| PC | UPC | APC | 62.5/125 | 50/125 | 50/125 10G | |||
| Invoegverlies | <0.2dB | <0.3dB | ||||||
| Retourverlies | ≥45dB | ≥50dB | ≥60dB | ≥35dB | ||||
| Duurzaamheid | <0.1dB typische verandering, 500 paringen |
|||||||



-
