Productdetails:
Betalen & Verzenden Algemene voorwaarden:
|
| Item: | LC-APC-DX SC type Adapter | Color: | Green |
|---|---|---|---|
| Structure: | Flange or Flangeless | Test: | 100% |
| Materials: | FBT+PC | Ferrule material: | Ceramic |
| Cap color: | White | Fiber type: | Single mode |
| Markeren: | Ceramic sleeve lc to sc fiber adapter,CATV Duplex Singlemode adapter,CATV Duplex Lc To Sc Fiber Adapter |
||

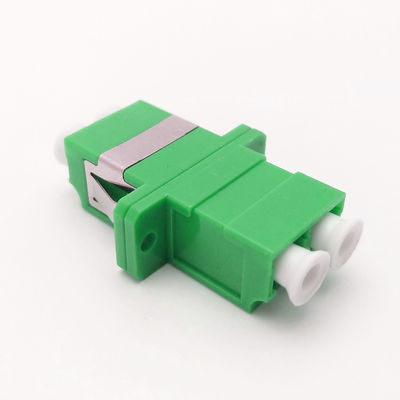

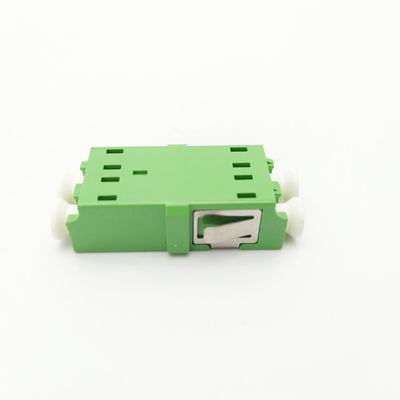

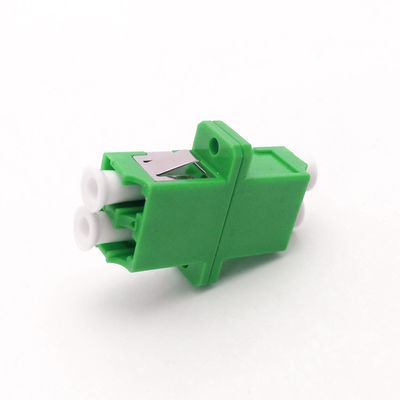

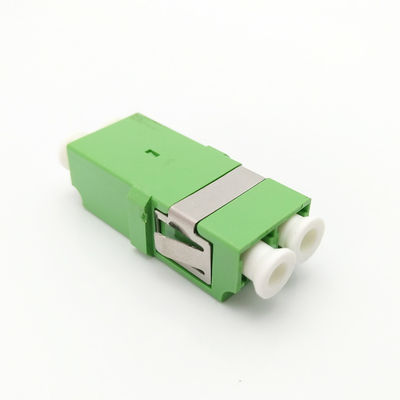

CATV Duplex Singlemode Ceramic Sleeve Lc To Sc Fiber Adapter
LC / APC Duplex Fiber Optical Coupler Plastic SC Shape Adapter Singlemode Flange or Flangeless
Description:
Fiber optic adapter, sometimes also called coupler, is a small device designed to terminate or link the fiber optic cables or fiber optic connectors between two fiber optic lines.
By linking two connectors precisely,fiber optic adapters allow the light sources to be transmitted at most and lower the loss as much as possible.At the same time,fiber optic adapters have the merits of low insertion loss,good interchangeability and reproducibility. We supplies a wide range of mating sleeves and hybrid adapters,including special male to female hybrid fiber optic adapter.
Features:
Low insertion loss and back reflection loss
Ferrule end surface pre-domed
Precision anti-rotation key and corrosion resistant body
UL-rated plastic housing
Telcordia style boots
Free-floating ceramic ferrule
Zirconia sleeves or Phosphor bronze sleeves
D-shaped easily installs into panel mount
RoHS compliant
Application:
Fiber Optic Telecommunications
LAN (Local Area Network)
FTTH (Fiber To The Home)
CATV&CCTV System
High speed transmission systems
Fiber optic sensing
Industtial, Mechanical and Military
| Connector Type | LC,FC,SC,MU,ST,MTRJ,Hybrid | |
| Fiber Type | Singlemode | Multimode |
| Insertion Loss | ≤0.2dB | |
| Return Loss | PC≥45dB;UPC≥50dB;APC≥60dB | ≥30dB |
| Durability | ≤0.2dB,after 1000times | |
| Operation Temperature | -40℃~+75℃ | |
| Storage Temperature | -40℃~+85℃ | |

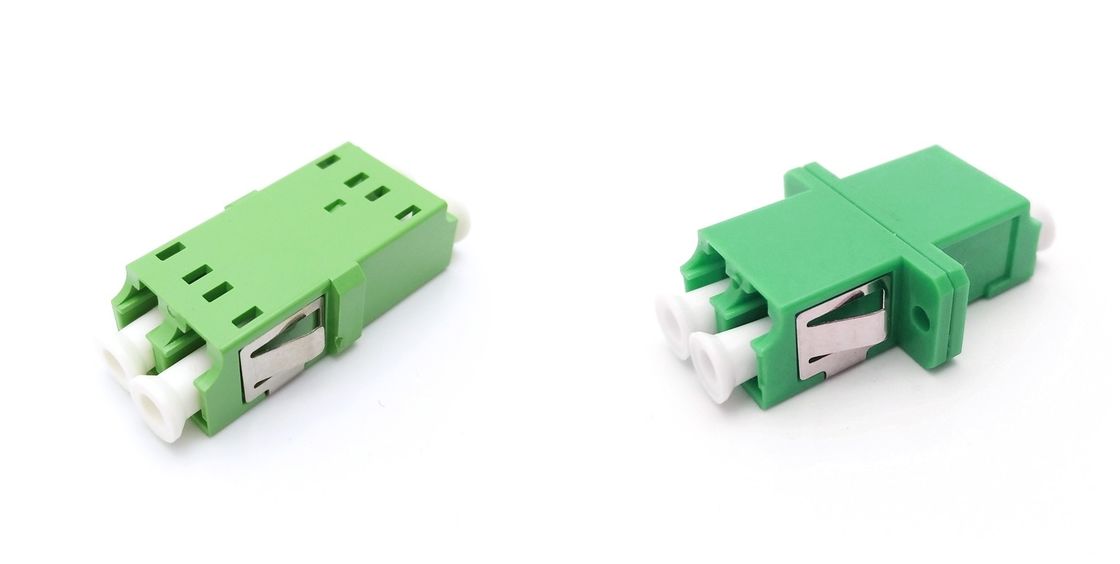

Pictures and Drawing(The Unit is mm):
