| Modelnr.: | CMC-GM-00 | Specificatie: | CE, SGS, RoHS |
|---|---|---|---|
| Oorsprong: | SHENZHEN CHINA | Hs-code: | 85176221 |

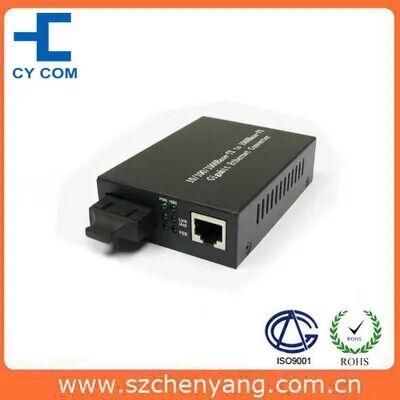

| Markeren: | Fiber optic media converter with warranty,Gigabit Ethernet media converter 1000Base-SX,Multimode fiber optic converter 850nm |
||
| Operating standards |
IEEE802.3 10Base-T Ethernet, IEEE802.3u 100Base-TX/FX Fast Ethernet, IEEE802.3ab 1000Base-T, IEEE802.3z 1000Base-SX/LX Gigabit |
|---|---|
| Wavelength | 850nm/1310nm/1550nm |
| MAC address table | 4K |
| Data Buffer | 256K |
| Connector |
UTP: RJ-45, 10/100/1000Mbps Fiber: SC, 1000Mbps |
| Cable |
UTP cable: Cat 5e or Cat 6 (the max distance up to 100m) Fiber: - Multimode: 50/125, 62.5/125μ M (the max distance up to 550/224m) - Singlemode: 8.3/125, 8.7/125, 9/125μ M (the max distance up to 120km) Connector: FC/PC or SC or SFP port |
| Flow control |
Full Duplex: IEEE802.3X Half Duplex: Back pressure. |
| Conversion mode | Medium conversion |
| Delay | <10μ S |
| Bit error rate | <1/1000000000 |
| MTBF | 80,000 hours |
| LED Indicators |
POWER (power), FX LINK (fiber link action), TP LINK1000 (twisted pair connection 1000M), TP LINK100 (twisted pair connection 100M), TP ACT (twisted pair packet forwarding action), FDX (Ethernet interface mode indicator ON, Full duplex/ OFF, Half duplex) |
| Power Requirement |
Input: AC 170 ~ 240V or DC -36V-72V Output: DC 5V 2A Power consumption: 5W |
| Environmental |
Ambient temperature: 0 ~ +50°C Storage temperature: -20 ~ +70°C Humidity: 5% ~ 90% |
| Dimensions |
Internal power: 30×110×140mm External power: 26×70×93mm |
